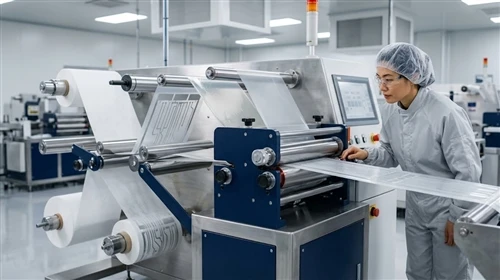

Why Lamination Matters in Multi-Layer Electrode Pad Manufacturing

A medical electrode pad may look like a simple, flat product.

In reality, it can contain several functional layers working together:

Backing material → conductive layer → hydrogel → release liner

These layers need to remain properly positioned and securely integrated throughout manufacturing, storage, transportation, and use.

One important manufacturing process that helps bring these layers together is lamination.

Lamination is not simply about making different materials stick together.

It is about creating a controlled, consistent multi-layer structure without compromising the functional properties of the individual materials.

For OEM and ODM electrode pad projects, this process can have a significant impact on product consistency and manufacturing reliability.

Lamination is a manufacturing process used to combine two or more material layers into a controlled multi-layer structure.

In electrode pad manufacturing, it can help maintain:

• Layer adhesion
• Structural integrity
• Layer alignment
• Consistent thickness
• Material positioning
• Product repeatability

The exact lamination process depends on the materials and construction of the electrode pad.

For OEM projects, lamination should be developed together with the complete layer structure rather than treated as an isolated production step.

Lamination is the process of combining multiple layers of materials into a single structured assembly.

In an electrode pad, different layers may serve different purposes.

For example:

• Backing material provides structural support.
• Conductive layer provides an electrical pathway.
• Conductive hydrogel provides the skin-facing interface.
• Release liner protects the functional surface before use.

These components need to maintain their intended relationship throughout the product's lifecycle.

Lamination helps create that integrated structure.

A single material cannot easily provide all the functions required from a medical electrode.

The product may need to be:

• Flexible
• Conductive
• Skin-compatible
• Comfortable
• Mechanically stable
• Easy to handle
• Protected during storage

Using multiple materials allows engineers to assign different functions to different layers.

This creates a basic principle in electrode engineering:

Each layer performs a specific function, while the complete structure determines the final product behavior.

Lamination is one of the manufacturing processes that turns these individual materials into that complete structure.

One of the key challenges in multi-layer manufacturing is keeping different materials correctly aligned.

Consider an electrode pad with:

• A specific external shape
• A defined conductive area
• A centrally positioned connector
• A hydrogel layer matching the active area

If one layer shifts during lamination, the final product may not match the intended design.

Potential consequences include:

• Uneven layer margins
• Misaligned conductive areas
• Incorrect connector positioning
• Irregular appearance
• Problems during subsequent processing

For this reason, alignment control is an important part of the lamination process.

Electrode pads often combine materials with very different physical characteristics.

For example, one layer may be:

• Flexible

while another may be:

• Soft
• Adhesive
• Thin
• Dimensionally stable
• Slightly elastic

These materials may respond differently to pressure, temperature, tension, or machine speed.

Lamination therefore requires process conditions appropriate for the specific material combination.

There is no single setting that is automatically suitable for every electrode construction.

Lamination may involve controlled combinations of process parameters such as:

• Pressure
• Temperature, where applicable
• Line speed
• Material tension
• Contact time
• Alignment

The appropriate conditions depend on the materials and the intended product structure.

Too little bonding may lead to insufficient layer integration.

Excessive process conditions may negatively affect sensitive materials.

The objective is to establish a stable processing window that consistently produces the required result.

A well-designed lamination process should preserve the intended relationship between the different layers.

For example, the conductive layer should remain positioned correctly relative to the hydrogel.

The backing material should provide the required structural support.

The release liner should remain properly positioned over the functional surface.

The final result is therefore not simply:

Layer A + Layer B + Layer C

It is a controlled structure in which the position, interface, and integrity of each layer matter.

A prototype may look perfect after lamination.

But OEM production requires the same result to be repeated across large quantities.

Potential sources of variation can include:

• Material thickness variation
• Material tension
• Machine settings
• Temperature fluctuations
• Pressure variation
• Alignment variation
• Equipment condition

This is why process control becomes increasingly important as production volume increases.

The goal is not simply to achieve good bonding once.

It is to establish a process capable of producing consistent layer integration from batch to batch.

The conductive hydrogel is a particularly important part of the electrode structure.

Because it is softer and more sensitive than many structural materials, the lamination process needs to be compatible with the hydrogel system.

Manufacturers may need to consider:

• Hydrogel properties
• Backing material
• Bonding interface
• Process pressure
• Temperature exposure
• Production speed

A change in hydrogel formulation or backing material may therefore require the lamination process to be reevaluated.

This is another example of why electrode manufacturing should be approached as a complete system.

Lamination does not always represent the final manufacturing stage.

The laminated material may continue into processes such as:

• Die cutting
• Connector integration
• Slitting
• Packaging
• Inspection

This means the laminated structure needs to be stable enough to move through subsequent operations.

For example, inconsistent layer bonding may create problems during die cutting or handling.

Good process engineering therefore considers not only the lamination step itself, but also what happens to the material afterward.

Depending on the product requirements, manufacturers may evaluate laminated structures through several methods.

Visual inspection

Checking for:

• Wrinkles
• Bubbles
• Misalignment
• Surface defects
• Material deformation

Dimensional inspection

Checking the position and dimensions of the relevant layers.

Bonding evaluation

Assessing whether the layers remain appropriately integrated.

Functional evaluation

Confirming that the laminated structure still meets the required product performance.

The exact inspection criteria should be defined according to the electrode design and applicable quality requirements.

For OEM and ODM projects, lamination should not be considered only after the product design has been finalized.

Early engineering evaluation can help answer questions such as:

• Can the selected materials be laminated together?
• Is the layer structure manufacturable?
• What alignment tolerances are realistic?
• Will the process affect sensitive materials?
• Can the structure pass through subsequent converting processes?
• Can the design be reproduced efficiently at scale?

Addressing these questions early can reduce redesign and production problems later.

When developing a multi-layer electrode pad, OEM buyers can provide:

Layer structure

Clearly define the required material layers.

Material specifications

Provide available material specifications or performance requirements.

Product dimensions

Include overall dimensions and critical layer dimensions.

Alignment requirements

Identify areas where layer positioning is particularly important.

Application

Explain the intended use and expected product conditions.

Production volume

Expected volume can influence manufacturing process selection.

Sample

An approved physical sample can help clarify the intended construction.

This information allows the manufacturer to evaluate the design from both engineering and production perspectives.

Assuming all materials can be laminated together

Material compatibility needs to be evaluated before production.

Focusing only on bonding strength

A successful laminate also needs correct alignment, dimensional stability, and functional integrity.

Ignoring material tension

Flexible materials can shift or deform during continuous processing.

Treating the process as a one-time setup

Production conditions need to remain controlled over time.

Testing only the individual layers

The final multi-layer structure should be evaluated as a complete product.
