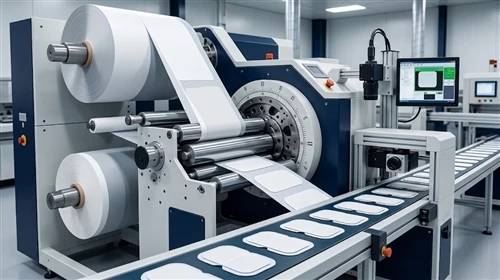

How Electrode Pads Are Die-Cut And Converted Into Precise Shapes

Electrode pads are available in many different shapes and sizes.

Some are simple rectangles or circles.

Others have rounded edges, irregular contours, narrow sections, multiple layers, or customized geometries designed for specific applications.

But how does a flat sheet of electrode material become a finished electrode pad with a precise and repeatable shape?

One common manufacturing approach is die cutting.

Die cutting allows manufacturers to convert continuous or sheet materials into consistent electrode pad shapes at production scale.

For OEM and ODM projects, the process is particularly important because the challenge is not simply producing one accurate sample.

The real challenge is producing thousands or millions of units with the same geometry and dimensional consistency.

Die cutting is a manufacturing process used to convert electrode pad materials into defined shapes and dimensions.

A typical process may involve:

Material preparation → Tooling → Alignment → Die cutting → Layer conversion → Inspection → Final assembly

The exact process depends on the electrode construction.

Important factors include:

• Tooling accuracy
• Material alignment
• Cutting depth
• Dimensional tolerances
• Layer construction
• Material properties
• Production process control

For OEM electrode pads, these factors help determine whether a customized design can be reproduced consistently at scale.

Die cutting is a manufacturing process that uses a shaped cutting tool, known as a die, to cut materials into predetermined geometries.

Instead of manually cutting each electrode pad, a die allows the same shape to be reproduced repeatedly.

This makes the process suitable for high-volume production.

Depending on the product construction, die cutting may be used to process:

• Backing materials
• Conductive structures
• Hydrogel-related layers
• Protective liners
• Adhesive materials
• Multi-layer assemblies

The specific sequence depends on how the electrode pad is constructed.

Electrode pad geometry is not only an aesthetic decision.

The finished shape needs to match the approved product design.

Dimensional variation can potentially affect:

• Application area
• Product appearance
• Layer alignment
• Connector position
• Packaging fit
• Manufacturing consistency

For this reason, precision cutting becomes increasingly important as electrode designs become more complex.

A manufacturer may successfully create an initial prototype using manual or low-volume methods.

However, mass production requires a process capable of reproducing the same geometry repeatedly.

The cutting die is one of the most important elements in the process.

The geometry of the die corresponds to the desired shape of the finished electrode pad.

It may include:

• Overall dimensions
• Rounded corners
• Cutouts
• Curved edges
• Tabs
• Special contours

For customized OEM products, tooling is generally developed according to approved product drawings or samples.

The quality of the tooling can influence cutting accuracy, repeatability, and production efficiency.

Even an accurate cutting die cannot compensate for poor material positioning.

During production, different layers may need to remain correctly aligned.

For example:

Backing material

↓

Conductive structure

↓

Hydrogel

↓

Release liner

If the layers shift relative to one another, the finished electrode may not match the intended design.

This is why alignment and registration are important parts of the converting process.

Electrode pads are often multi-material products.

Different materials can behave differently during cutting.

Some materials are:

• Flexible
• Elastic
• Soft
• Thin
• Adhesive
• Multi-layered

The cutting process therefore needs to be appropriate for the materials being processed.

Factors may include:

• Cutting pressure
• Tool geometry
• Cutting depth
• Material thickness
• Machine speed
• Layer configuration

The goal is to achieve clean and consistent cuts without unnecessarily damaging surrounding layers.

Simple geometries are relatively straightforward to convert.

However, customized electrode pads can have more complicated shapes.

Examples include:

• Anatomical contours
• Narrow sections
• Asymmetrical shapes
• Multiple radii
• Internal cutouts
• Extended connector areas

With more complex geometries, manufacturers need to consider not only whether the die can cut the shape, but also whether the material can move through the process without distortion.

This is where tooling design and process engineering become particularly important.

A drawing may specify a particular electrode dimension.

But manufacturing is not performed with infinite precision.

Every production process has some degree of variation.

Therefore, OEM projects should define appropriate dimensional tolerances based on:

• Product function
• Material characteristics
• Manufacturing capability
• Assembly requirements
• Packaging requirements

The goal is not necessarily to make every part mathematically identical.

The goal is to keep production within defined and controlled specifications.

When electrode pads are die-cut from larger sheets or rolls, some material remains between the finished pieces.

This leftover material is commonly referred to as matrix waste or production scrap.

The layout of the electrode shapes on the source material can therefore affect material utilization.

For high-volume manufacturing, efficient nesting can help reduce:

• Material waste
• Production cost
• Scrap volume

However, maximizing material utilization should not compromise product quality or manufacturing reliability.

The best layout balances:

Material efficiency + Production stability + Product quality

Die cutting does not necessarily happen as a completely isolated operation.

Depending on the electrode construction, manufacturing may involve several converting steps.

For example:

Laminating → Die cutting → Layer separation → Connector integration → Inspection

Some processes may be performed sequentially, while others can be integrated into automated production equipment.

The objective is to create a controlled production flow in which each step contributes to the final electrode structure.

After die cutting, manufacturers need to confirm that the finished components meet the required specifications.

Inspection may include:

Dimensional inspection

Checking length, width, diameter, contour, and other defined dimensions.

Visual inspection

Looking for:

• Burrs
• Incomplete cuts
• Surface damage
• Material deformation
• Contamination

Layer alignment

Confirming that functional layers remain correctly positioned.

Connector position

Where applicable, verifying that the connector remains within the required location and tolerance.

The exact inspection process depends on the electrode design and quality requirements.

One of the most important challenges in OEM manufacturing is transferring a design from development into stable mass production.

A prototype may be produced using a different process or lower production speed.

Once the order moves into mass production, manufacturers need to consider:

• Production speed
• Tool life
• Material variation
• Machine repeatability
• Operator procedures
• Inspection frequency
• Process capability

This is why design-for-manufacturing should be considered early.

A shape that looks excellent in a drawing may require adjustment once its manufacturability is evaluated.

For a customized electrode pad project, useful information includes:

Product drawing

Provide accurate dimensions and geometry whenever possible.

Approved sample

A physical sample can help clarify design details that may not appear in a drawing.

Layer structure

Identify the required materials and layer relationships.

Connector position

Specify the required connector location and interface.

Tolerances

Define critical dimensional requirements where applicable.

Production volume

Expected annual or order quantity can influence tooling and manufacturing recommendations.

Application

Explain how and where the electrode will be used.

This information helps the manufacturer evaluate the design from both product and manufacturing perspectives.

Designing the shape without considering manufacturability

A theoretically attractive shape may be unnecessarily difficult to manufacture consistently.

Ignoring material behavior

Soft, flexible, adhesive, or multi-layer materials can behave differently during cutting.

Treating tooling as a one-time decision

Tool condition and production consistency need to be considered throughout the manufacturing process.

Focusing only on dimensional accuracy

Clean cutting, layer alignment, material integrity, and repeatability also matter.

Optimizing material utilization at the expense of stability

Reducing scrap is valuable, but not if it compromises production quality.
