An electrode pad drawing may specify dimensions such as length, width, thickness, connector position, or functional-area location.

But a manufacturing drawing does not simply define a single number.

In production, every manufactured part has some degree of variation.

This is where tolerance becomes important.

For OEM electrode pad projects, tolerances help define the acceptable range within which a product can vary while still meeting its intended requirements.

The challenge is finding the right balance.

Tolerances that are too loose may affect product consistency or compatibility.

Tolerances that are unnecessarily tight may increase tooling complexity, inspection requirements, production difficulty, and cost.

Suppose an electrode pad drawing specifies a nominal length of:

100 mm

That does not necessarily mean every finished electrode must measure exactly 100.000 mm.

A manufacturing specification may instead define an acceptable range around the nominal dimension.

For example, the drawing could specify a particular tolerance according to the project's engineering requirements.

The key concept is:

Nominal Dimension ≠ Manufacturing Result

Real-world manufacturing always involves some variation.

The purpose of a tolerance is to establish which variation is acceptable.

DFM is not about changing a product simply to make manufacturing easier.

The objective is to find the best balance between:

• Product Function
• Manufacturing Feasibility
• Quality
• Cost
• Scalability

For electrode pads, this evaluation may involve several areas.

Electrode pads are manufactured from flexible materials and through multiple converting processes.

During production, variation can potentially come from:

• Raw material dimensions
• Material thickness
• Web movement
• Tooling
• Machine settings
• Material deformation
• Cutting processes
• Measurement methods
• Environmental conditions

A well-defined tolerance system recognizes that variation exists and establishes appropriate acceptance limits.

This is especially important when electrode pads are manufactured repeatedly over many production batches.

Not every tolerance refers to the same type of characteristic.

Depending on the product design, an OEM drawing may define different categories.

1. Length and Width Tolerance

Overall dimensions are among the most straightforward requirements.

For example:

• Overall length
• Overall width
• Diameter
• Distance between features

These dimensions may be important for product packaging, device compatibility, application area, or other design requirements.

2. Thickness Tolerance

Thickness can apply to:

• Backing material
• Conductive layers
• Hydrogel
• Release liner
• Overall laminated structure

The important point is that thickness variation can sometimes affect downstream manufacturing processes.

For a multilayer electrode, the final structure is determined by several individual material layers rather than one material alone.

3. Feature Position Tolerance

Some features need to be located relative to another feature.

For example:

• Connector position
• Conductive area location
• Cutout position
• Printed marking
• Functional layer alignment

In these cases, the position of the feature may matter as much as its size.

4. Shape and Cut-Line Tolerance

The finished electrode geometry is normally created through a converting process such as die cutting.

The cutting line therefore has a defined relationship to the intended product geometry.

For complex designs, maintaining consistent positioning between the material web and the cutting tool becomes increasingly important.

This is one of the most important concepts in DFM.

An OEM drawing may contain many dimensions.

But that does not mean every dimension has the same functional importance.

Consider a simplified electrode design with:

• Overall length
• Overall width
• Hydrogel area
• Connector position
• Corner radius
• Non-functional edge dimension

These dimensions may not all have the same impact on product performance.

A practical engineering approach is therefore to distinguish between:

Critical Dimensions

Dimensions directly related to product function, fit, safety, or important interfaces.

Important Dimensions

Dimensions that influence manufacturing or product consistency but have some flexibility.

Reference Dimensions

Dimensions primarily used for design communication or information.

The exact classification depends on the product.

The important principle is:

Tolerance should be driven by function and manufacturing capability, not simply by a desire for maximum precision.

It may seem logical that a tighter tolerance automatically means a higher-quality product.

In manufacturing, this is not necessarily true.

Suppose a product can perform its intended function within a relatively broad dimensional range.

Requiring an extremely narrow tolerance may provide little functional benefit while increasing:

• Tooling requirements
• Inspection frequency
• Manufacturing complexity
• Production time
• Material waste
• Rejection risk

This can make the manufacturing process unnecessarily difficult.

A better approach is to establish tolerances that are tight enough for the product's requirements but realistic for the manufacturing process.

There is another important relationship:

The tolerance specified by the customer should be compatible with the capability of the manufacturing process.

For example, a manufacturer may have a highly repeatable process for producing a particular electrode geometry.

If the customer's specified tolerance is significantly tighter than what the process can reliably maintain, the project may require:

• Process improvement
• Additional inspection
• Different tooling
• Different equipment
• Design adjustment

This is one reason why DFM review should happen before finalizing production tooling.

Electrode pads are often converted from continuous material into individual shapes.

The cutting tool must therefore maintain the intended relationship with the material.

If a product includes multiple features, the engineering team may need to control:

• Tool position
• Web alignment
• Cutting geometry
• Material movement
• Registration
• Tool wear

A tolerance specification should take these manufacturing realities into account.

A drawing that looks simple on screen can become much more complex when thousands of identical parts need to be produced.

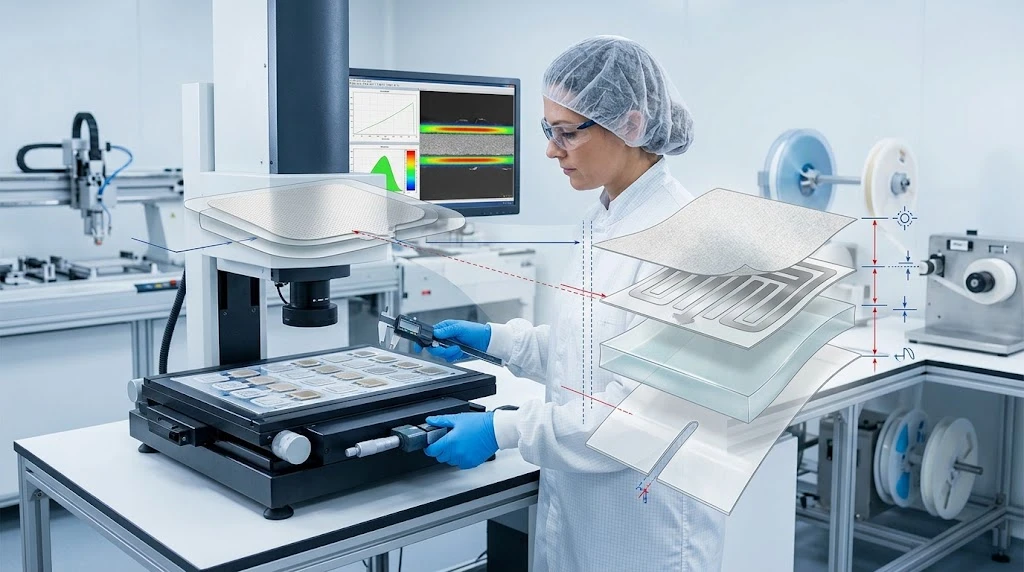

For multilayer electrodes, dimensional variation can occur at several levels.

For example:

Backing Layer

↓

Conductive Layer

↓

Hydrogel

↓

Release Liner

The overall product may have a dimensional requirement, while individual layers may also have their own dimensional or alignment requirements.

This means manufacturers need to consider not only:

"Is the finished pad the correct size?"

but also:

"Are the individual layers correctly positioned relative to one another?"

This is particularly relevant when functional areas need to align with the final die-cut geometry.

Electrode pads are different from rigid metal components.

Many electrode materials are flexible.

Some may stretch, compress, deform, or respond differently to manufacturing conditions.

This means dimensional control cannot always be considered independently from material behavior.

For example, an incoming flexible material may have one nominal dimension but behave differently during:

• Unwinding
• Coating
• Lamination
• Slitting
• Die cutting
• Rewinding

Therefore, manufacturers need to understand both the material and the process when establishing practical tolerances.

Tolerance can also influence manufacturing efficiency.

If a product requires extremely precise positioning or unusually narrow spacing between components, the material layout may become more difficult to optimize.

This can increase:

• Trim waste
• Production scrap
• Tooling complexity
• Material consumption

For high-volume OEM projects, these small effects can accumulate.

A DFM review can therefore consider tolerance requirements together with material layout and production volume.

Tolerance specifications are only useful if the manufacturing process can control them.

Depending on the product and production system, manufacturers may use:

Process Setup

Establishing appropriate machine and tooling parameters before production.

Material Alignment

Controlling the position of the continuous material web.

Tooling Control

Maintaining cutting tools and their alignment.

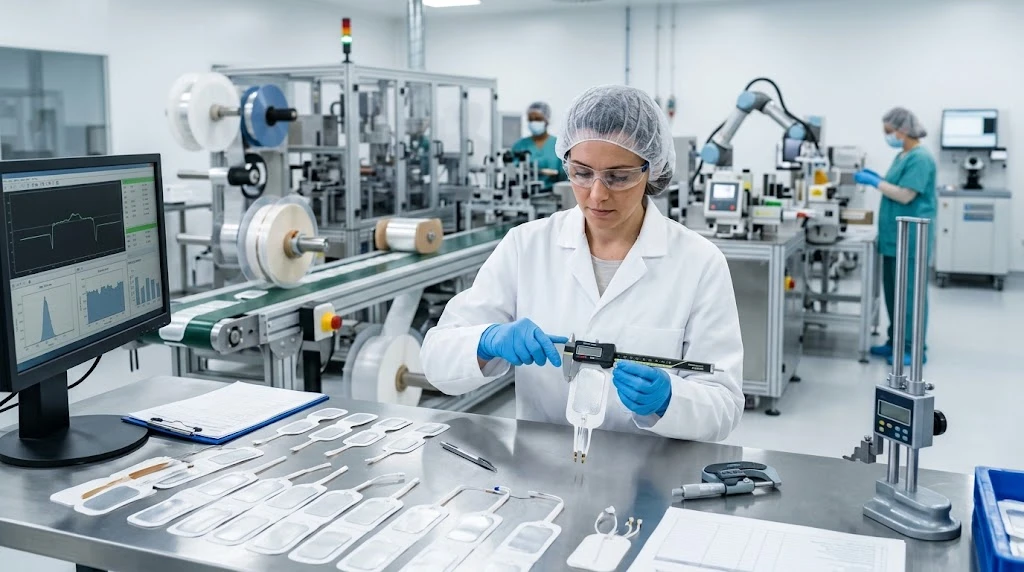

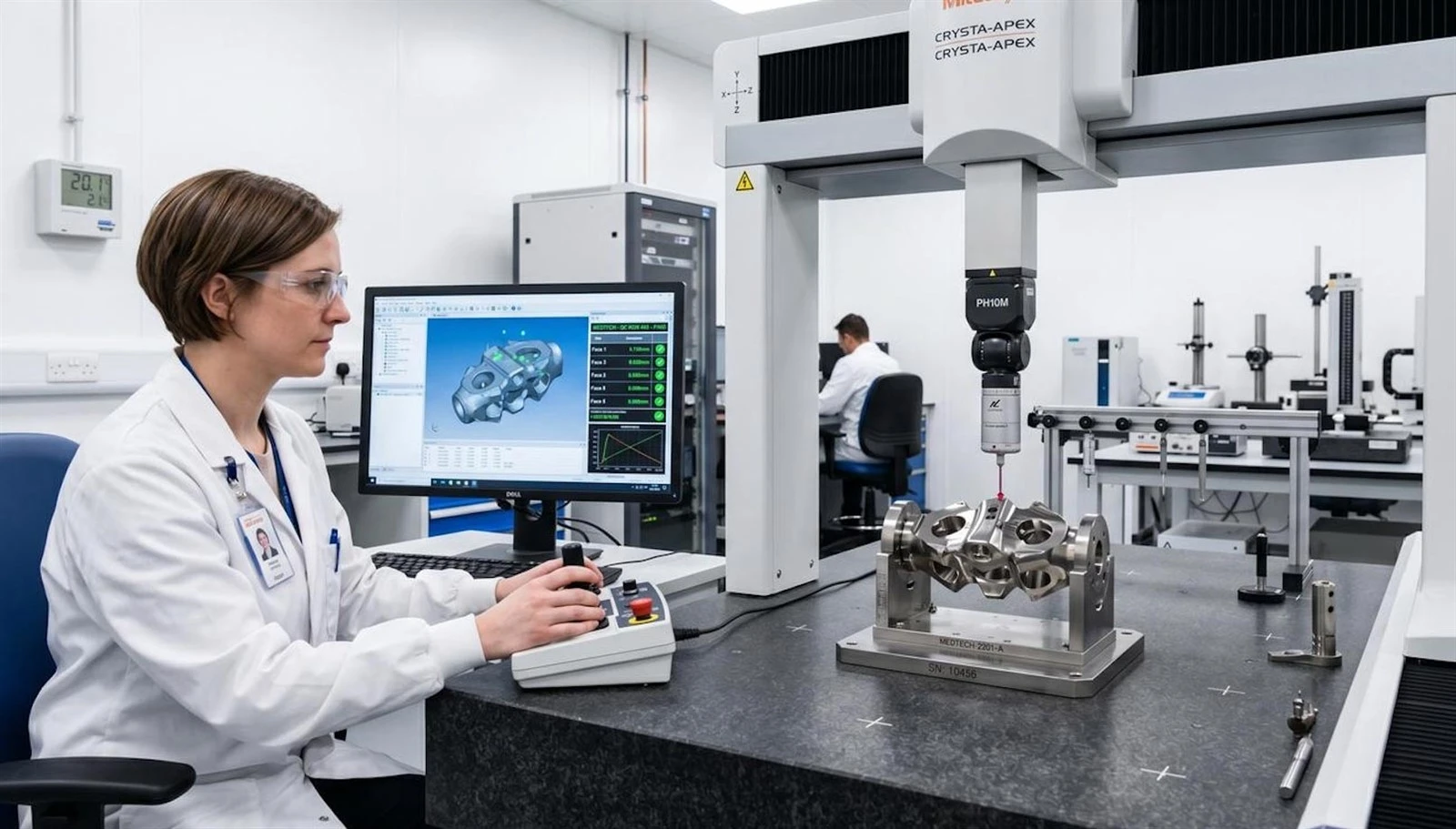

In-Process Inspection

Checking dimensions during production rather than relying only on final inspection.

Statistical Monitoring

Tracking measurements over production runs to identify trends or process changes.

Final Inspection

Verifying finished products against defined specifications.

The specific methods depend on the product and quality system.

An important aspect of manufacturing control is not simply determining whether a product has passed or failed.

Suppose a specification defines an acceptable range.

If measurements begin trending toward one edge of that range, the process may require attention even before an actual failure occurs.

This is an example of process monitoring.

Instead of waiting until products fall outside the specification, manufacturers can monitor production trends and investigate potential causes.

This can help reduce the risk of producing large quantities of nonconforming products.

When a product contains multiple layers or components, individual variations can accumulate.

This concept is often referred to as tolerance stack-up.

Imagine several dimensions contributing to one final position.

Each individual dimension may remain within its own acceptable range, but the combined variation can influence the final relationship between features.

This becomes relevant for electrode pads with:

• Multiple layers
• Multiple functional areas
• Connector interfaces
• Complex geometries
• Multiple converting operations

Therefore, engineering teams should consider the relationship between dimensions rather than looking at each tolerance in isolation.

Tolerance requirements may also evolve during product development.

During an early prototype stage, the objective may be to verify:

• Basic geometry
• Material compatibility
• Intended function
• General usability

Once the product moves toward mass production, engineering teams may need to define more detailed:

• Critical dimensions
• Acceptance criteria
• Production tolerances
• Inspection methods
• Tooling requirements

This is another reason why prototype drawings and production drawings should not always be treated as identical documents.

If you are developing an electrode pad with an OEM manufacturer, a useful engineering drawing may define:

• Overall dimensions
• Critical features
• Layer structure
• Material specifications
• Connector location
• Functional area dimensions
• Relevant tolerances
• Inspection requirements
• Revision information

Where possible, it is also helpful to identify which dimensions are functionally critical.

This gives the manufacturer a better understanding of what must be tightly controlled.

Before finalizing an electrode pad design, buyers can ask:

Can the proposed tolerances be achieved consistently?

This is more useful than simply asking whether the manufacturer can make one sample.

Which dimensions are considered critical?

This helps separate functional requirements from non-critical dimensions.

Are the tolerances compatible with the proposed tooling?

Tooling strategy can influence achievable consistency.

How are dimensions inspected during production?

This helps clarify whether dimensional control is performed only at the end or throughout production.

Will the tolerance affect material utilization?

This can become particularly relevant for large-volume orders.

Could a wider tolerance provide the same functional result?

If yes, the design may be easier and more economical to manufacture.

Consider an OEM customer developing a rectangular electrode pad.

The initial design specifies several very tight dimensional requirements.

During engineering review, the manufacturer identifies that:

• Some dimensions directly affect the functional area.
• Some relate mainly to the external appearance.
• Some have little influence on product performance.
• Some are difficult to inspect efficiently at production scale.

Instead of treating every dimension equally, the engineering team can review the requirements according to their actual function.

The result may be a design that maintains the important performance-related dimensions while using more practical tolerances elsewhere.

This is the essence of DFM:

not reducing precision, but applying precision where it matters.

An electrode pad drawing is not simply an illustration of the product.

It is also a communication tool between:

Product Development

→

Engineering

→

Manufacturing

→

Quality Control

→

OEM Customer

Clear tolerance requirements help these teams understand what needs to be controlled and how the finished product will be evaluated.

When tolerances are unclear, different teams may interpret the same design differently.

When they are defined appropriately, the drawing becomes a much stronger foundation for repeatable production.
