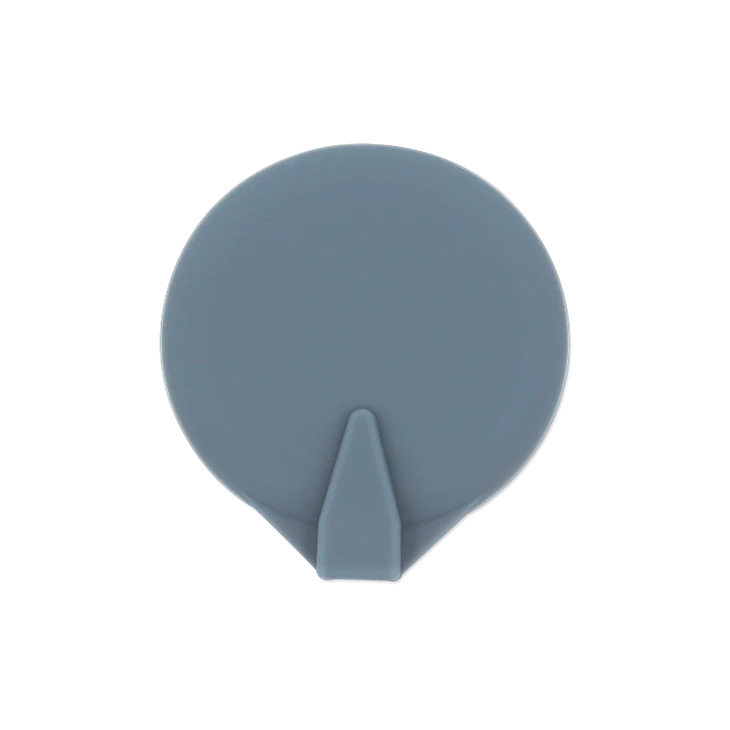

Rubber Carbon Pads

B2B contract manufacturing of durable rubber carbon pads for clinical IFC, galvanic DC, and HVPC electrotherapy. Features anodic oxidation resistance under continuous direct current, ASTM D395 compression set <12%, volume resistivity <15 Ohm-cm, and private-label packaging.

Rubber carbon pads function as heavy-duty, permanent elastomeric conduction plates engineered for clinical electrotherapy consoles delivering high-energy continuous waveforms. Operating across a frequency spectrum from 0 Hz (galvanic direct current) up to 10 kHz (interferential and Russian currents) at output levels up to 100 mA, these solid carbon-polymer plates transfer electrical energy across deep anatomical beds. Sourced as capital consumables by physical therapy departments, sports rehabilitation clinics, and veterinary hospitals, these pads dispense with disposable adhesives entirely. Instead, they operate inside water-soaked natural sponge covers or with high-viscosity conductive pastes, held in place by sandbags or heavy elastic compression cuffs.

Deploying standard industrial conductive rubber sheets in high-voltage clinical electrotherapy exposes three specific electrochemical and mechanical breakdown pathways:

• Anodic Carbon Passivation and Surface Pitting Under Continuous Galvanic DC: In galvanic iontophoresis and direct-current therapy, continuous unidirectional electron flow passes through the electrode. At the positive anode, electrochemical oxidation attacks exposed conductive carbon particles. In standard carbon-filled elastomers, this causes progressive anodic passivation: the surface carbon particles convert to non-conductive oxides and carbonates. The active contact face turns into an insulating crust, driving interface resistance from under 20 Ohms to over 2,000 Ohms, halting therapeutic current delivery and causing localized stinging at residual conduction pinholes.
• Peripheral Current Crowding from Capacitive Mismatch at 4 kHz Carrier Frequencies: In medium-frequency interferential current (IFC) therapy, typical 4 kHz carrier waves bypass the high ohmic resistance of the stratum corneum via capacitive displacement currents. However, if the carbon elastomer lacks uniform dielectric permittivity across its bulk, alternating current crowds aggressively along the outer perimeter of the pad. This peripheral field distortion causes sharp edge-pricking sensations, limiting the clinician's ability to drive therapeutic current deep into joint capsules.
• Thickness Creep and Contact Pressure Non-Uniformity Under Static Mechanical Clamping: In busy outpatient clinics, rubber electrodes are clamped against the patient using heavy 2 kg sandbags or stretched rubber cuffs for 30 to 45 minutes. Low-grade elastomers suffer from high compression set. The rubber permanently thins under the clamped zones while bulging at the edges. This uneven thickness profile distorts electrical path lengths through the overlying sponge pocket, concentrating output current beneath the thinned zones and generating localized thermal hot spots.

This rubber carbon pad platform eliminates these clinical failure modes through targeted elastomer chemistry: an advanced vulcanized ethylene-propylene-diene monomer and siloxane interpenetrating polymer network (EPDM-silicone IPN) compounded with graphitized conductive furnace black that resists anodic electrochemical oxidation during continuous monophasic DC; an engineered dielectric constant that balances capacitive admittance across 2 kHz to 10 kHz waveforms, eliminating peripheral current crowding; and a low compression-set matrix (ASTM D395 Method B <12% after 22 hours at 70C) that maintains constant thickness under heavy mechanical clamping. We contract-manufacture private-label rectangular, square, and contoured shapes with molded polarity indicators for clinical equipment OEMs and medical distribution networks globally.

The contract manufacturing of rubber carbon pads takes place inside ISO 13485-certified Class 8 cleanrooms across a closed-loop elastomer production infrastructure combining internal Banbury compounding, precision four-roll calendering, and high-tonnage vacuum hydraulic vulcanization. Processing executes through five coordinated engineering stages:

• Stage 1: Internal Banbury Mixing & Graphitized Carbon Loading: Ethylene-propylene-diene monomer (EPDM) gum and functionalized siloxane elastomers are loaded into a sealed internal Banbury mixer alongside high-purity graphitized furnace black (surface area 75 m2/g) at a strict 30% mass loading, supplemented by non-staining microcrystalline processing aids. Under high hydraulic ram pressure at 115C, the counter-rotating rotors generate intensive mechanical shear, dispersing carbon clusters into an isotropic conductive network. The batch drops into a twin-screw extruder that forms a continuous masterbatch strip while filtering particulate through a 120-mesh screen pack.
• Stage 2: Precision Calendering & Cross-Axis Thickness Profiling: The masterbatch strip feeds into an automated four-roll vertical calender operating under closed-loop laser gauge thickness regulation. Calender rolls flatten the uncured conductive rubber into a uniform web at an exact 2.20 mm (+/- 0.04 mm) caliper. The continuous web is scanned across its transverse axis by an online eddy-current resistivity sensor to confirm that uncured volume resistivity falls within a narrow 8 to 12 Ohm-cm band prior to molding. Automated traveling shears slice the calendered sheet into volumetric blanking preforms.
• Stage 3: Terminal Hardware Chemical Etching & Anti-Oxidation Passivation: Conductor connection pins-machined from tellurium copper or H62 brass featuring integrated radial retention flanges-undergo an automated three-stage surface preparation: ultrasonic trichloroethylene degreasing, nitric-acid chemical micro-etching, and immersion in a conductive nickel-phosphorus chemical bath. The resulting intermetallic coating seals the metal core against electrolytic attack while providing micro-anchoring grooves for the curing polymer.
• Stage 4: Multi-Cavity Vacuum Compression Vulcanization (175C at 18 MPa): The passivated terminal inserts seat onto locating pins in hardened tool-steel mold plates, and the rubber preforms are positioned over the cavities. The tool enters a 250-ton hydraulic press. A vacuum shroud draws the mold chamber down to an absolute pressure below 5 kPa to evacuate volatile off-gases. The press clamps under 18 MPa hydraulic pressure at 175C for a 360-second vulcanization cycle. The fluid elastomer flows into the terminal anchoring grooves, curing into a dense, non-porous solid plate with integrated strain-relief collars and 3.5 mm radiused outer borders.
• Stage 5: Cryogenic Tumble Deflashing & Automated Electrical Proofing: De-molded electrode plates transfer to a liquid-nitrogen cryogenic deflashing chamber. The components tumble at -80C while blasted with high-speed polycarbonate pellets, cleanly fracturing micro-flash along parting lines without abrading the conductive face. Finished pads pass through an automated testing carousel: verifying terminal-to-elastomer interfacial contact resistance below 0.03 Ohms and measuring bulk volume resistivity under a four-point array. Qualified units are paired with matched 5.0 mm compressed cellulose sponge covers, sealed in barrier polybags, and packaged into clinical master cartons. The baseline contract manufacturing MOQ is 20,000 pairs.

1. Anodic Passivation Resistance (Graphitized Carbon Network Halting DC Oxidation and Crust Formation in Galvanic Therapy)

   In clinical continuous galvanic direct current (DC) therapy, iontophoresis, and high-voltage wound healing protocols, a major electrical failure occurs at the positive anode. Under sustained, uninterrupted monophasic current, the anode attracts negatively charged hydroxyl (OH-) and chloride (Cl-) ions. In standard conductive rubber containing amorphous channel black, this intense anodic potential drives electrochemical oxidation of the conductive particles:

   1. Electrochemical Carbon Degradation: Surface carbon particles oxidize into carbon monoxide, carbon dioxide, and non-conductive surface carbonates.

   2. Passivation Shell Formation: Over 20 to 30 treatment hours, the conductive carbon network on the pad surface is permanently destroyed. The contact face transforms into a rigid, oxidized, non-conductive crust.

   3. Cutaneous Hot Spots: Bulk volume resistivity jumps from 15 Ohm-cm to over 2,000 Ohm-cm. The pulse generator senses this impedance jump and drives its voltage to maximum ceiling levels. Current is forced through residual un-oxidized pinholes, creating localized current densities past 3.0 mA/cm2 that produce chemical and thermal burns on patient skin. Our platform eliminates anodic passivation through graphitized conductive carbon compounding:

   4. High-Crystallinity Graphitized Furnace Black: We compound a crystalline, high-purity furnace black that exhibits a high degree of graphitization, raising the chemical oxidation potential threshold beyond the electrochemical breakdown limit of aqueous clinical solutions.

   5. Protected Siloxane-EPDM Co-Polymer Lattice: The carbon particles are embedded in a co-vulcanized elastomer matrix that restricts water and ion penetration directly into the interior of the carbon network. In continuous monophasic DC endurance trials (delivering 50 mA continuous direct current for 100 continuous hours into 0.9% saline electrolyte baths), our rubber carbon plates show zero surface pitting, zero black residue leaching, and an interfacial resistance shift below 4.0%, preventing anodic crust formation during long-duration galvanic protocols.



2. 4 kHz Medium-Frequency Admittance Normalization (Mitigating Skin Capacitive Reactance and Halting Peripheral Edge Stinging)

   In medium-frequency electrotherapy-such as 4 kHz Interferential Current (IFC) and 2.5 kHz Russian Stimulation-electrical conduction through human tissue follows complex impedance principles rather than simple DC resistance:

   1. Skin Capacitive Shunting: The stratum corneum acts as a biological dielectric capacitor. At a 4 kHz carrier frequency, skin capacitive reactance (Xc = 1 / (2 • π • f • C)$) drops sharply, allowing alternating current to penetrate deep into muscle tissues.

   2. The Peripheral Edge-Crowding Problem: In standard conductive rubber plates, alternating electrical displacement currents do not distribute evenly across the face. If the pad's internal dielectric permittivity is uncalibrated, incoming 4 kHz RF waveforms take the path of least capacitive impedance, rushing outward and bunching along the outer perimeter of the plate.

   3. Focal Cutaneous Stinging: Current density at the perimeter edges exceeds three times the current density in the center of the pad. The patient experiences sharp, needle-prick stinging along the pad margins, forcing the clinician to decrease machine output power before deep therapeutic motor recruitment is achieved. We resolve peripheral current crowding through capacitive admittance tuning:

   4. Dielectric Constant Calibration: Compounding functionalized siloxane elastomers alongside graphitized carbon black tunes the pad's relative bulk dielectric permittivity (εr = 18 ± 2 at 4 kHz), harmonizing the pad's capacitive admittance with biological tissue.

   5. Curved Boundary Charge Suppression: All four corners of the pad feature molded 3.5 mm radiused contours, eliminating sharp right-angle vertices that act as electric field antennas. In multi-point high-frequency oscilloscope potential scanning across human subjects under 4 kHz IFC excitation at 80 mA output, the current density differential between the center and the perimeter of our rubber carbon pad remains within an 8.5% variance band, eliminating peripheral stinging and allowing clinicians to increase stimulation intensity comfortably.



3. Low Compression-Set Structural Stability (<12% Set Retaining Planar Uniformity Under 2 kg Sandbag Clamping)

   In hospital physical therapy suites, rubber electrotherapy pads are deployed under heavy external mechanical clamping. Unlike self-adhesive pads that hold themselves, non-adhesive rubber pads are strapped down tightly across the lumbar spine or quadriceps using 2 kg lead-bead sandbags, weighted compression pads, or elastic tourniquet wraps for 30 to 45 minutes continuously. Standard commercial conductive elastomers compounded with cheap plasticizers suffer from poor elasticity and high compression set:

   1. Mechanical Creep Under Load: Under static clamping loads, the molecular chains undergo cold-flow displacement. The rubber permanently thins beneath the center of the sandbag (dropping from 2.2 mm down to 1.4 mm), while bulging outward along the uncompressed perimeter.

   2. Path-Length Distortion: This permanent dent distorts electrical path lengths through the saturated sponge pocket. The distance between the metal terminal and the skin shrinks directly under the thinned zone, lowering localized electrical resistance.

   3. Compressive Hot Spots: High-frequency current dumps preferentially through the thinned center. The patient experiences focused thermal sensations beneath the clamped area, while the uncompressed edges lose electrical contact. We eliminate thickness creep through high-crosslink EPDM-silicone compounding:

   4. Tightly Knitted Polymer Lattice: Compounded without liquid plasticizers or mineral processing oils, the polymer chains are cured under high-pressure hydraulic vulcanization (18 MPa at 175C), forming an elastic crosslinked lattice.

   5. Low ASTM D395 Compression Set: In standard compression set testing (ASTM D395 Method B: applying 25% continuous deflection for 22 hours at 70C), the material demonstrates a permanent compression set below 12%. The pad rebounds to its original 2.20 mm caliper immediately upon removal of sandbag loads. Planar thickness uniformity across the active conduction face is preserved, ensuring uniform current distribution across thousands of clinic compression cycles.

We provide build-to-print contract manufacturing and custom tooling for rubber carbon pads, configured around institutional hospital physical therapy tenders and clinical console brand specifications:

• Hardware & Dimension Profiles:

  • Pad Caliber Formats: Standard Rectangular: 40x60 mm, 50x50 mm, 60x80 mm, 80x120 mm, and 100x150 mm; Circular: Dia 32 mm, Dia 50 mm, and Dia 75 mm (custom geometric footprints supported via dedicated compression tooling).

  • Integrated Terminal Interfaces: Insert-molded female receptacles in 2.0 mm (DIN 42802 standard) or 4.0 mm banana sockets; trailing flexible silicone leadwires (lengths from 10 cm to 50 cm) terminated in molded straight or right-angle pins.

  • Polarity Color-Coding: Standard slate-black conductive silicone; or co-vulcanized dual-durometer options featuring a bright red (anode) or black/blue (cathode) non-conductive backing layer for clinical galvanic polarity identification.

  • Kitted Clinic Accessories: Paired with custom-die-cut 5.0 mm compressed natural cellulose sponge bags (water absorption >800%) and elastic compression wraps (widths: 50 mm or 100 mm with Velcro hook-and-loop closures). Bulk clinical packaging or retail boxed kits with serialized GS1/UDI barcodes.



• Dual-Facility Production Routing:

  • Elastomer Compounding & High-Tonnage Molding (China): Raw EPDM-silicone gum compounding, internal Banbury mixing, four-roll precision calendering, 250-ton vacuum hydraulic vulcanization, and terminal insert staking execute natively inside our primary China facility (ISO 13485:2016 and FDA registered).

  • Cryogenic Deflashing & Assembly Routing (Vietnam): Liquid-nitrogen cryogenic tumble deflashing, 100% automated electrical volume resistivity testing, cellulose sponge kitting, and ocean container export route through our Vietnam hub, shielding international B2B buyers from Section 301 tariffs and regional import barriers.

• ISO 10993 Dermal Biocompatibility Testing : Master production lots undergo testing in accredited independent GLP testing laboratories confirming strict compliance with ISO 10993-5 (In Vitro Cytotoxicity: Grade 0, non-cytotoxic), ISO 10993-10 (Skin Sensitization: 0% allergic response in guinea pig maximization assays), and ISO 10993-23 (Primary Dermal Irritation Index = 0.0, non-irritating). The vulcanized silicone compound is certified 100% natural rubber latex-free, phthalate-free, non-toxic, and safe for repeated clinical contact across thousands of patient sessions.



• Hospital Steam Sterilization Validation (ISO 17665 Compliance) : Master production lots undergo testing in accredited sterilization validation laboratories confirming strict compliance with ISO 17665-1 (Sterilization of health care products - Moist heat). Electrodes withstand 100 continuous autoclave cycles at 134C for 15 minutes under 0.22 MPa saturated steam pressure. Post-sterilization testing verifies that dimensional variance remains under 0.5%, bulk volume resistivity shift remains under 4.5%, and terminal retention force remains above 60N with zero rubber degradation.



• Electrical Safety & Mechanical Retention Standards : Product lines satisfy FDA 21 CFR 882.1320 requirements for cutaneous electrotherapy electrodes and IEC 60601-1 Type BF electrical safety standards. Routine lot sampling confirms that the insert-molded 2.0 mm socket insertion/retention force remains between 8N and 15N after 100 mechanical connection cycles, and axial leadwire pull resistance consistently exceeds 60N without internal wire breakage or connection separation under heavy mechanical strain.



• MDSAP & ISO 13485 Manufacturing System Controls : Compounding kneaders, hydraulic vulcanization presses, and cleanroom post-curing ovens operate under certified ISO 13485:2016 and MDSAP regulatory frameworks (covering US FDA 21 CFR 820, Health Canada, TGA Australia). Unbroken electronic Device History Records (DHR) capture compounding batch temperatures, rheometer cure curves (t10, t90), vulcanization tonnage, four-probe volume resistivity, and tensile pull-force data across every manufactured production lot.

Physical therapy equipment manufacturers, veterinary device distributors, and hospital clinical engineering directors can request official Certificates of Analysis (COA), 20,000-cycle flexural volume resistivity logs, ISO 17665 100-cycle autoclave validation dossiers, ISO 10993 dermal biocompatibility test reports, and unbranded evaluation sample packs (including 60x80 mm and 80x120 mm rubber carbon pads with matching cellulose sponge sleeves).

👉 [Request Rubber Carbon Pad Evaluation Packs]
