Quick Answer
TENS electrode pads are typically made of three main components:
- Conductive hydrogel – provides adhesion and electrical conductivity
- Conductive layer (carbon film) – distributes electrical signals
- Backing material – supports structure and flexibility
The quality of these materials directly affects adhesion, comfort, and durability.
What Are TENS Electrode Pads?
TENS electrode pads are adhesive patches that deliver electrical impulses from a TENS device to the body through the skin.
They act as the interface between the device and the human body, ensuring stable signal transfer and comfortable application.
The 3 Main Materials in TENS Electrode Pads
1. Conductive Hydrogel (Core Component)
The hydrogel layer is the most important part of any electrode pad.
Conductive hydrogel is a water-based polymer material that allows electrical signals to pass through while adhering gently to the skin.
Functions:
- provides adhesion to the skin
- ensures electrical conductivity
- distributes current evenly
Key characteristics:
- high moisture content
- soft and skin-friendly
- reusable in most cases
High-quality hydrogel determines how long a TENS pad can stick and how consistently it delivers electrical stimulation.
2. Conductive Layer (Carbon Film or Conductive Ink)
This layer sits between the gel and the connector.
Functions:
- distributes electrical signals evenly across the pad
- ensures stable conductivity
Common materials:
- carbon film
- conductive ink
Without this layer, electrical signals would not spread evenly, leading to inconsistent stimulation.
3. Backing Material
The backing layer provides structure and flexibility.
Common options:
- non-woven cloth
- PET film
- foam
- tan tricot
Functions:
- supports the pad shape
- allows flexibility during movement
- affects durability and comfort
Backing material determines how well an electrode pad conforms to the body and maintains adhesion during movement.
Additional Components
In addition to the main layers, electrode pads also include:

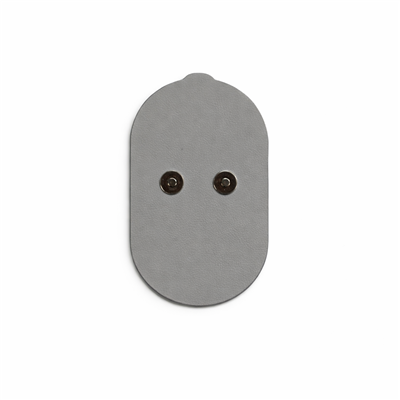

Connector System
- 2.0 mm pin
- snap connectors
These connect the pad to the TENS device.
Protective Liner
- plastic film used for storage
- keeps hydrogel clean and hydrated
Packaging
- foil pouches
- resealable bags
Proper packaging helps maintain moisture and extend shelf life.
Why Material Quality Matters
Material quality directly affects:
- adhesion (how well the pad sticks)
- conductivity (signal delivery)
- comfort (skin compatibility)
- lifespan (number of uses)
Low-quality materials often lead to pads that dry out quickly, fall off, or cause uneven stimulation.
Are All TENS Pads Made the Same Way?
Not exactly.
While most pads share the same basic structure, differences exist in:
- hydrogel formulation
- backing material quality
- manufacturing processes
These differences explain why some pads last significantly longer than others.
OEM vs Retail Electrode Pads
Retail Pads:
- standardized sizes
- designed for general users
OEM Pads:
- customizable shapes and materials
- tailored for brands and clinics
- produced under stricter quality systems
Frequently Asked Questions
Are TENS electrode pads safe for skin?
What is the most important material in a TENS pad?
Do better materials mean longer lifespan?
CTA
For brands and distributors, material selection is one of the most important factors in electrode pad performance.
Custom hydrogel formulations, backing materials, and packaging options are commonly used in OEM production to meet different market needs.
