Electrically Conductive Hydrogels Manufacturer | Low-Impedance & High-Tack
Looking for electrically conductive hydrogels for medical sensors or stimulators? We manufacture ISO 10993 compliant hydrogel matrices with tunable impedance and adhesion. Available in master rolls for OEM converting and sensor integration.
Material Introduction
The Critical Interface Between Electronics and Biology.
In the world of medical devices, Electrically Conductive Hydrogels (also referred to as ionic conductive skin-interface materials) serve as the vital bridge that transmits electron flow from hardware into ionic flow in human tissue.
TOP-RANK engineers and coats high-performance hydrogel matrices designed specifically for the rigorous demands of medical wearables and electrotherapy. Unlike generic industrial gels, our formulas are optimized for long-term electrical stability. We utilize a proprietary cross-linked polymer network that retains moisture and conductivity even under changing humidity conditions, ensuring the signal quality never degrades during use.
Key Performance Characteristics
1. Biocompatibility & Safety (ISO 10993) For skin-contact materials, safety is the primary design constraint. Our manufacturing process uses radiation or thermal curing to minimize residual monomers.
- ISO 10993 Compliance: All batches are tested to be non-cytotoxic, non-irritating, and non-sensitizing.
- pH Balanced: Maintained at 5.5–6.5 to match the skin's acid mantle.
2. Tunable Conductivity (Impedance Control) We don't just sell "gel"; we engineer conductivity based on signal requirements.
- Low Impedance Formula: Designed for rapid recovery and low noise baselines.
Typical use case: Defibrillation, ECG Monitoring, short-pulse signal acquisition.
- Standard Impedance Formula: Optimized for balancing current distribution to prevent current density hot spots.
Typical use case: TENS/EMS neurostimulation, long-duration therapy with patient comfort priority.
3. "Smart" Adhesion (High-Tack, Low-Trauma) Unlike pressure-sensitive acrylic adhesives that rely solely on surface tack, our hydrogels balance adhesion and cohesion at the polymer-network level.
- Secure Grip: High shear strength ensures the sensor/electrode stays in place during patient movement.
- Clean Removal: Despite high tack, the cohesive strength of the gel ensures it peels off cleanly without leaving "black residue" or pulling hair (Trauma-Free Removal).
Applications
| Industry | Application | Why Our Gel Works? | ||
| Electrotherapy | TENS, EMS, IF Electrodes | Uniform Current Density prevents burns; Re-usable adhesion. | ||
| Diagnostics | ECG, EEG, EMG Sensors | Low DC Offset and noise; Rapid signal stabilization. | ||
| Electrosurgery | Grounding Pads (Return Electrodes) | Large surface thermal dispersion; Prevents heating. | ||
| Wearable Tech | Smartwatches, GSR Sensors | Short-term to mid-term wear (24h–7 days), depending on skin condition and enclosure design. |
Manufacturing & Supply Capabilities
From Lab Sample to Mass Production. We control the entire value chain in our Class 100,000 cleanroom:
- Mixing: Precision compounding of conductive salts and polymers.
- Coating: Automated slot-die coating onto PET, Foam, or Non-woven liners.
- Curing: UV or Thermal curing systems to lock in polymer structure.

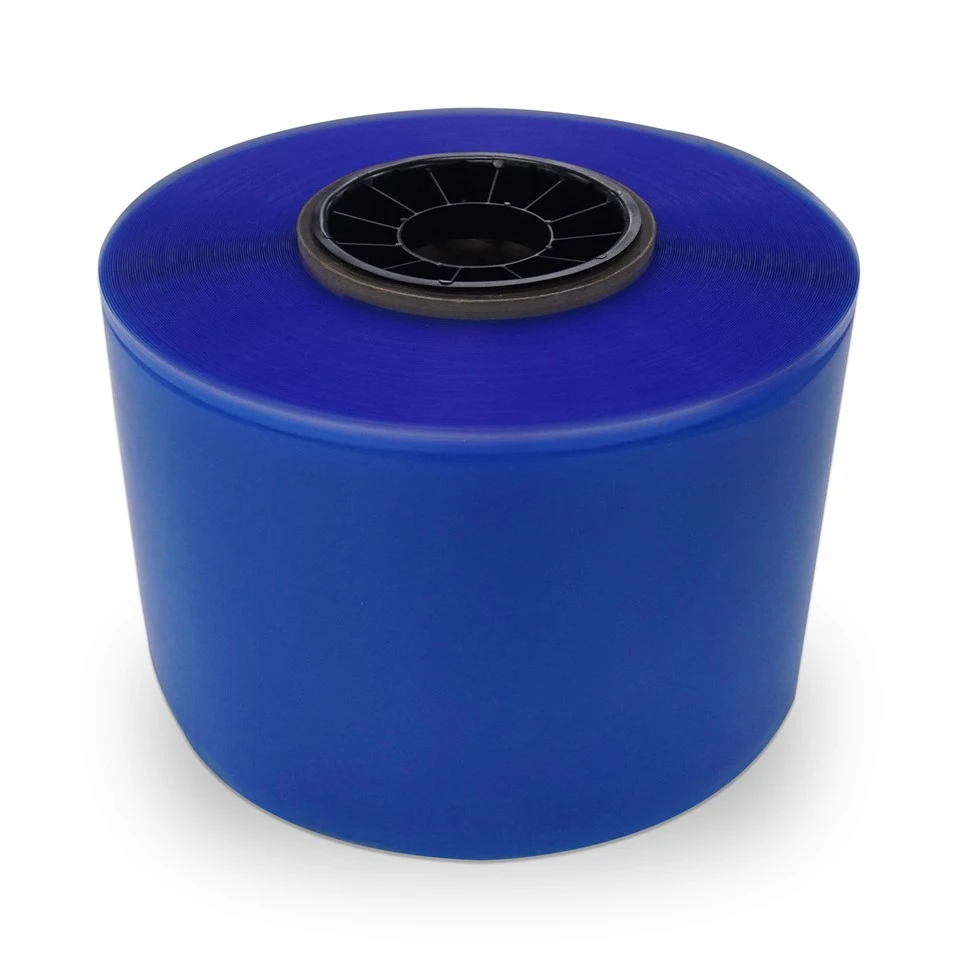

- Converting: Slitting master rolls to custom widths (e.g., 300mm, 500mm) or die-cutting into finished shapes.
All formulations are managed under controlled change procedures to ensure batch-to-batch electrical consistency.
Technical Data (Typical Values)
| Property | Value Range | |
| Volume Resistivity | 50 – 800 Ω-cm (Adjustable) | |
| Peel Adhesion (90°) | 0.5 – 15 N/25mm (Adjustable) | |
| Thickness | 0.8mm – 2.5mm (Standard 1.0mm) | |
| DC Offset Stability | Low / Controlled (Application Dependent) | |
| Moisture Content | 30% – 60% (Optimized for shelf life) | |
| Shelf Life | 24 Months (Sealed) |
Inquiry CTA
Engineer Your Next Medical Device
Don't settle for off-the-shelf glue. Partner with a manufacturer who can tune the chemistry to your device's needs.
Request Conductive Hydrogel Datasheet & Samples
Engineering samples and formulation guidance available under NDA.
