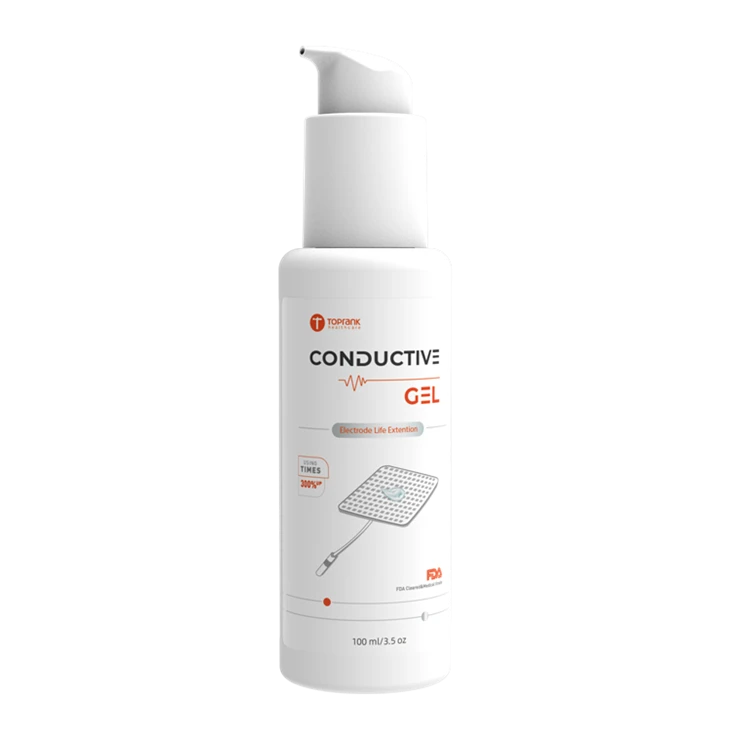

Conductive Gel for TENS | 60ml & 250ml Squeeze Bottles | TOP-RANK
Technical-grade conductive gel for TENS/EMS maintenance. Salt-free, pH-neutral, and water-soluble. Designed to reduce skin impedance and prevent pin corrosion.
Product Overview
This is a high-viscosity ionic medium designed for TENS (Transcutaneous Electrical Nerve Stimulation) and EMS (Electrical Muscle Stimulation) applications. It functions as a bridge to reduce skin-to-electrode contact resistance, primarily used for re-hydrating aged hydrogel pads or as a primary medium for rubber/carbon electrodes.
Key Features
-
Salt-Free Corrosion Resistance
Unlike generic coupling agents that use sodium chloride to boost conductivity, this formula is salt-free. High salinity in gels causes rapid oxidation and pitting of the stainless steel pins and nickel-plated snap connectors on TENS hardware. This polymer-based ionic path protects the hardware interface from chemical degradation.
-
37C Viscosity Maintenance
Low-grade carbomer chains collapse when exposed to skin temperature (37C), leading to fluid runoff and localized shorts. We use a thermally stable cross-linking density that ensures the gel remains localized under the electrode footprint during 30-minute stimulation cycles.
-
Vacuum-Deaeration Process
The production phase includes a vacuum-degassing stage to eliminate micro-bubbles. Air pockets in a conductive medium act as electrical insulators, forcing current into smaller paths and causing localized "stinging" or thermal hot spots. The resulting bubble-free medium provides uniform current density.
Applications
Outpatient Rehab
Re-hydrating high-volume TENS pads used in physical therapy clinics.
Home-Care Maintenance
Daily maintenance of personal TENS unit accessories to extend consumable life.
Sports Recovery
High-intensity EMS muscle training sessions requiring consistent electrical coupling.
OEM & Private Label
We operate production nodes in China and Vietnam to mitigate Section 301 tariffs and manage logistics costs.
- Custom Bottling: Available in 15g (travel size), 60g, and 250g (standard clinical size) HDPE squeeze bottles.
- Branding: Custom silk-screened labels with localized regulatory symbols and EAN/UPC barcodes.
Certifications
Quality Management: ISO 13485 and MDSAP.
Regulatory Compliance: CE (MDR), FDA (Class I), and UKCA documentation is ready for B2B procurement verification.
Batch QC: Every lot is tested for pH stability, viscosity range, and microbial count.
FAQ
Q:Why is the gel salt-free?
Salt-based gels are highly corrosive to metal pins. Using a salt-free ionic medium prevents the pin from turning green (oxidation) and maintains a low-resistance connection with the lead wire.
Q: Can this be used as a primary adhesive?
No. This is a conductive medium, not a skin adhesive. It is used to hydrate existing adhesive pads or to provide conductivity for non-adhesive rubber electrodes held in place by straps.
CTA
B2B project managers should review our viscosity stability reports and COA data.
👉 [Request Samples for Clinical Testing]
B2B project managers should review our viscosity stability reports and COA data.
👉 [Request Samples for Clinical Testing]
Hot Tags: conductive gel for tens, China conductive gel for tens manufacturers, suppliers, factory, Conductive Gel, ekg gel, TENS Unit Electrode Pads Gel, ecg gel, Electrode Contact Gel, electrode gel for TENS unit
Specifications
| No. | Item No | Volume | Package |
| 1 | TG-65ML | 65ml/2.3oz | 200pcs/carton, Carton dimession: 43cm*36cm*28cm, Gross weight: 14.5kgs |
| 2 | TG-90ML | 90ml/3.2oz | 160pcs/carton, Carton dimession: 43cm*36cm*28cm, Gross weight: 16kgs |
| 3 | TG-100ML | 100ml/3.5oz | 160pcs/carton, Carton dimession: 48cm*40cm*33cm, Gross weight: 17.5kgs |
| 4 | TG-150ML | 150ml/5.3oz | 160pcs/carton, Carton dimession: 48cm*40cm*33cm, Gross weight: 17kgs |
| 5 | TG-250ML | 250ml/8.9oz | 50pcs/carton, Carton dimession: 40cm*30cm*30cm Gross Weight:17kgs |
