Product Introduction
Reliable Protection Against Surgical Burns.
In the operating room, the Grounding Pad for Surgery is the silent guardian of patient safety. It serves as the vital return path for high-frequency electrical current, ensuring it exits the patient's body safely without causing thermal injury.
TOP-RANK manufactures hospital-grade grounding pads designed for critical surgical environments. We utilize a premium Low-Impedance Hydrogel that maximizes the contact area with the skin. This design effectively disperses current density, preventing the "hot spots" that lead to patient burns during electrosurgical procedures.
Commercial Note: This product line is specifically designed for hospital tenders, distributor portfolios, and OEM private-label supply.
Key Safety Technologies

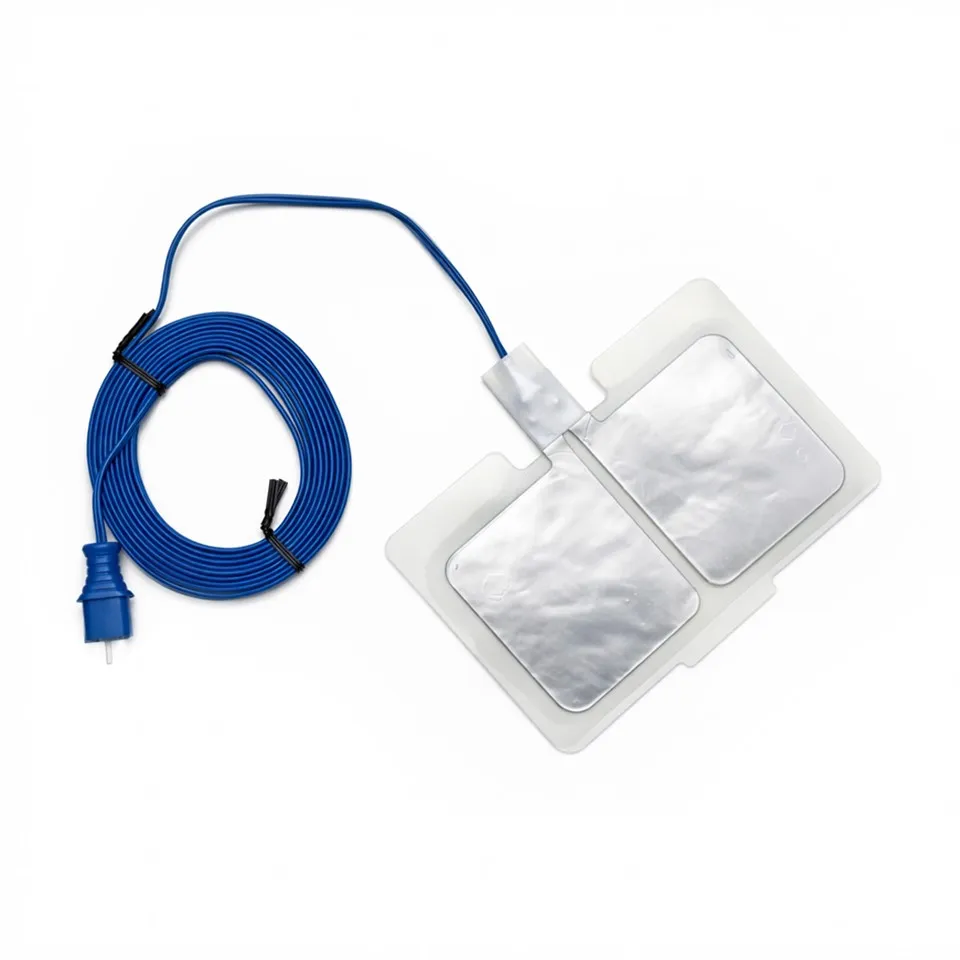

1. REM Safety System (Split Type) Modern surgery demands active monitoring. Our Split-Type (Dual Foil) grounding pads are fully compatible with REM (Return Electrode Monitoring) systems found in generators like Valleylab Force FX.
- Mechanism: The generator continuously checks the impedance between the two split foils.
- Safety: If the pad peels off or dries out, the system alarms and cuts power instantly, preventing accidents.
2. "Cool-Touch" Hydrogel Matrix High-wattage procedures (like cutting or coagulation) generate significant heat. Our proprietary hydrogel acts as a thermal sink, absorbing and dissipating heat at the pad site to maintain a safe skin temperature throughout the surgery.
3. Infection Control & Comfort
- Disposable: Single-use design eliminates cross-contamination risks.
- Backing Materials: Available in Soft Foam (fluid resistant, conformable) or Non-Woven (breathable) to suit different patient skin types and surgical durations.
Specifications & Sizing
| Type | Structure | Patient Weight | Connector Compatibility |
| Adult Split | Dual Foil (REM) | > 30 kg | REM Generators (e.g., Valleylab) |
| Adult Solid | Single Foil | > 30 kg | Non-REM Standard Units |
| Pediatric | Dual/Single Foil | 5 – 30 kg | Precision Monitoring |
| Neonate | Pre-wired | < 5 kg | Gentle Adhesion |
Technical Data Sheet
| Property | Specification | Standard |
| Product Name | Grounding Pad for Surgery | -- |
| AC Impedance | < 20 Ω | Low Resistance |
| Adhesive Strength | > 3.0 N/25mm | Secure Fixation |
| Conductive Area | > 110 cm² (Adult) | IEC 60601-2-2 |
| Biocompatibility | ISO 10993 Passed | No Cytotoxicity |
| Shelf Life | 2 Years | Aluminum Foil Pouch |
Compatibility Reference
Designed to work with major Operating Room (OR) equipment:
- Medtronic / Valleylab: Force FX, FT10.
- Conmed: System 5000.
- Erbe: VIO Series (NESSY System).
- Bovie / Aaron: Standard High-Frequency Generators.
Inquiry CTA
Secure Your Surgical Safety Chain
Don't compromise on patient safety. Choose REM-Compatible grounding pads from a trusted ISO 13485 manufacturer.
