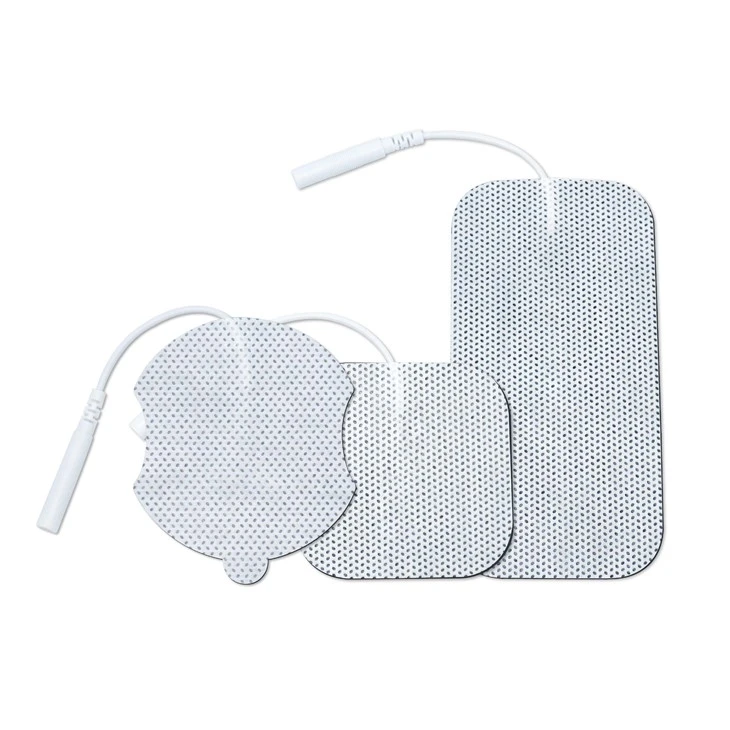

TENS Machine Patches

B2B wholesale TENS machine patches for OTC retail and e-commerce. Engineered with non-adhesive pull-tabs to prevent wire damage and packaged in MVTR-controlled barrier pouches for Amazon FBA routing.

"TENS Machine Patches" is the dominant commercial nomenclature utilized by OTC pharmacy buyers, D2C digital health brands, and cross-border e-commerce networks. Unlike clinical environments where trained practitioners carefully apply and remove electrodes, home-use consumers subject these consumables to unpredictable skin conditions and aggressive mechanical handling. We engineer these retail-grade patches to possess extreme "idiot-proof" physical tolerances. By modifying the hydrogel extrusion pattern and elevating the baseline cohesive tack, we supply B2B brands with a highly resilient consumer electronic accessory ready for direct global retail distribution.

Adapting a clinical electrode for the consumer retail market requires altering the slot-die hydrogel extrusion process. During standard converting, hydrogel is coated uniformly to the absolute edge of the backing material. For consumer patches, we utilize masked extrusion heads that deliberately leave a 2.0mm un-gelled perimeter around the carbon film. The gel itself is formulated with a higher ratio of tackifiers to aggressively penetrate the lipid layers of unwashed skin. Finally, the automated bagging lines are configured to inject precise lot-codes and expiration dates onto custom-printed, high-barrier retail pouches. Standard OEM runs for consumer packaging require an MOQ of 20,000 packs to offset multi-color printing cylinder costs.

• Non-Adhesive Pull-Tab Mechanics (Wire-Damage Prevention)

  The number one failure mode for home-use TENS patches is catastrophic wire tear-out. Untrained users simply grab the pigtail wire and yank the patch off their body. This immediately destroys the carbon-to-wire connection. To engineer this human error out of the product, we incorporate a discrete non-adhesive "lip" or pull-tab along the edge of the patch. Because this edge does not stick to the skin, it naturally prompts the user's thumb and index finger to grab the backing material directly. This shifts the kinetic removal force away from the fragile wire junction and distributes it across the structural spunlace, extending the patch's lifespan by 300%.



• Compensatory High-Tack Rheology

  In a clinical setting, nurses prep the skin with alcohol wipes to remove body oils and dead skin cells before applying an electrode. Home consumers apply patches directly over sweat, body lotions, and dry epidermal flakes. Standard medical gels fail under these conditions. We counteract this variable by shifting the polymer's viscoelasticity. We dope the polyacrylamide lattice with aggressive bio-compatible humectants, elevating the peel force beyond 5.0 Newtons. The patch acts as a viscoelastic fluid, chemically cutting through topical lotions and physically embedding into the rough topography of unprepped skin.



• Retail-Grade Barrier Pouching (Amazon FBA Optimization)

  E-commerce consumables often sit in unconditioned warehouses (like Amazon FBA centers) where temperatures fluctuate wildly. Standard plastic bags allow moisture to escape, turning the hydrogel into a dry, useless crust. We execute final consumer kitting using multi-layer AL/PE (Aluminum/Polyethylene) composite foils. This achieves a near-zero Moisture Vapor Transmission Rate (MVTR). The foil is subjected to 4-color high-speed rotary printing to showcase your retail branding, UPC barcodes, and required FDA/CE symbols, ensuring the patches remain warehouse-stable for 24 months.

• Elastomeric Logo Integration : To build brand loyalty, we utilize UV-cured elastomeric silk-screening to print your company logo directly onto the non-woven cloth or PU film backing. The ink chemically bonds to the fibers, ensuring the logo does not crack or peel when the consumer stretches the patch over a joint.

• Logistics Routing : Raw web extrusion and precision rotary die-cutting execute in China. Final automated 4-color pouch sealing, barcoding, and retail box kitting are routed exclusively through our Vietnam hub, bypassing aggressive consumer electronics and medical component tariffs for North American digital health brands.

• Consumer Biocompatibility : Extracted matrices are independently audited against ISO 10993-5 (Cytotoxicity) to guarantee zero allergic contact dermatitis for end-users, shielding OTC brands from product liability claims.

• Systems : Pouch sealing pressures, weight tolerances, and cleanroom handling execute strictly under audited ISO 13485:2016 frameworks, ensuring medical-grade quality control for commercial OTC products.

Digital health brands and OTC e-commerce sellers can request pull-tab evaluation patches and MVTR barrier pouch samples.

👉 [Request TENS Machine Patches Samples]
