Pre-Wired TENS Electrodes

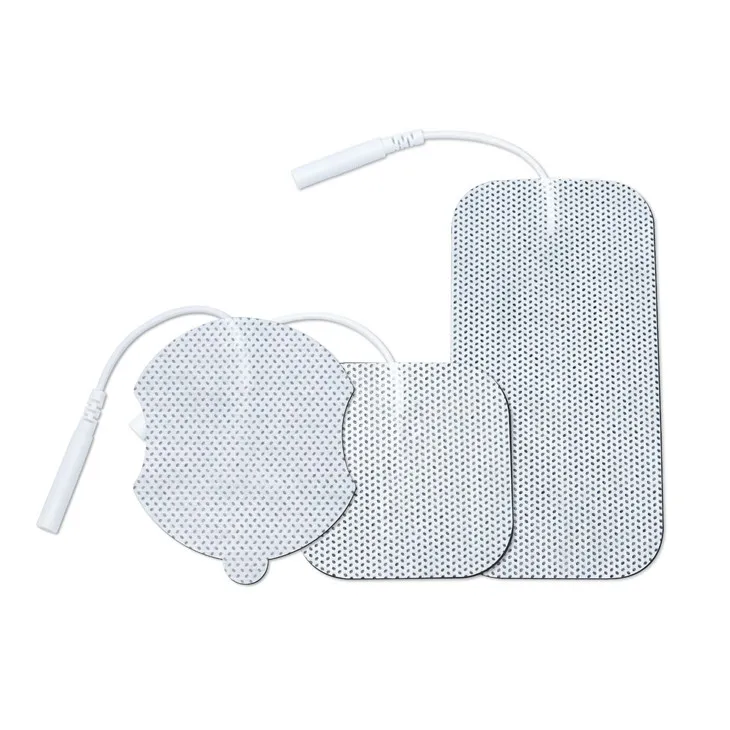

B2B pre-wired TENS electrodes with integrated 2.0mm female sockets. Engineered with thermally anchored copper wire mesh to withstand 50N of extraction force without substrate delamination.

Pre-wired TENS electrodes, commonly referred to as "pigtail" pads, represent a massive segment of the clinical transdermal consumable market. Unlike snap-on variants that require the clinician to physically press a rigid metal stud down into the patient's inflamed skin, these pads feature a pre-integrated, flexible lead wire terminating in a molded female socket. This "off-site" connection geometry eliminates localized mechanical pressure during setup. Our engineering focus for this product line centers on the structural integrity of the wire-to-pad junction, ensuring the embedded copper mesh survives aggressive kinetic pulling in high-turnover physical therapy environments. We supply these assemblies in bulk to clinical distributors and durable medical equipment (DME) brands.

The critical manufacturing node for a pre-wired pad is the internal wire insertion. The process begins by stripping the medical-grade PVC jacket from the end of the pigtail, exposing the multi-strand copper core. This bare copper is physically fanned out (spread flat) to maximize its surface area. Using automated laminators, the fanned mesh is sandwiched between the top backing material (cloth or foam) and the conductive carbon film. A calibrated hot-press die stamps the assembly, melting the polymer binders and permanently fusing the copper mesh into the carbon matrix. The opposite end of the wire is injection-molded into a 2.0mm female socket. Standard B2B wholesale mandates a minimum order quantity (MOQ) of 20,000 individual units.

• Wire-Mesh Thermal Anchoring Mechanics

  In clinical settings, users rarely disconnect pads by gently holding the pad edge; they simply grab the wire and yank. In cheaply manufactured pads, the wire is glued to a single point, resulting in the copper core ripping out of the gel entirely under less than 15N of force. Our hot-press lamination embeds the fanned copper strands directly into the microscopic pores of the carbon extrusion. The structural backing and the carbon layer are thermally welded through the gaps in the copper mesh. This macro-entanglement establishes an extraction threshold exceeding 50N, ensuring the pad lifts off the skin as an intact unit before the wire junction ever yields.



• Fanned Current Dispersion Vector

  A metal snap delivers electricity via a concentrated 3.5mm point source, which requires heavy carbon doping to prevent focal hot spots. A pre-wired pad completely alters this electrical entry vector. Because the copper wire is stripped and physically fanned out across 15mm to 20mm of the carbon substrate before lamination, the incoming milliampere current is pre-distributed. The electricity enters the carbon film across a wide, flat front rather than a single pinpoint. This significantly lowers the localized current density, inherently preventing thermal "biting" or "stinging" sensations in the dead center of the pad.



• Blind-Insertion Friction Control (Female Socket)

  The 2.0mm female socket must securely grip the male pin of the host stimulator's main cable. If the socket material is too rigid, the clinical technician cannot insert the pin fully. If the material is too soft, patient movement causes the pin to slip out, triggering a painful open-circuit arc. We precisely engineer the Shore A hardness of the PVC or TPU used to overmold the female terminal. This guarantees a highly specific internal friction coefficient. The practitioner experiences smooth blind-insertion, yet the socket provides enough kinetic grip to lock the 2.0mm pin in place regardless of the patient's kinematic shifting.

• Custom Overmolding and Pigtail Lengths : We do not rely on third-party wire vendors. All copper strand processing and terminal injection molding operate in-house. OEMs can dictate the exact length of the pigtail (e.g., short 5cm tails for compact wearables or 20cm tails for complex routing), as well as custom pantone-matched PVC wire jackets to align with corporate branding.

• Logistics Routing : Wire stripping, copper thermal anchoring, and hydrogel laminating are executed continuously in our China facilities. Final pad die-cutting, terminal QA testing, and automated pouch sealing route through our Vietnam hub, mitigating specific US and EU B2B medical electronic sub-assembly tariffs.

• RoHS Cable Compliance : The PVC jackets and molded sockets on the pigtail are rigorously audited against RoHS and REACH directives to ensure the complete absence of heavy metals and toxic plasticizers (phthalates).

• Quality Systems : Thermal press parameters, copper-to-carbon impedance verification, and cleanroom handling run strictly under our ISO 13485:2016 and MDSAP medical device manufacturing frameworks.

Medical device distributors and clinical equipment brands can request pigtail pull-test tension logs and unbranded 2.0mm female socket prototypes.
