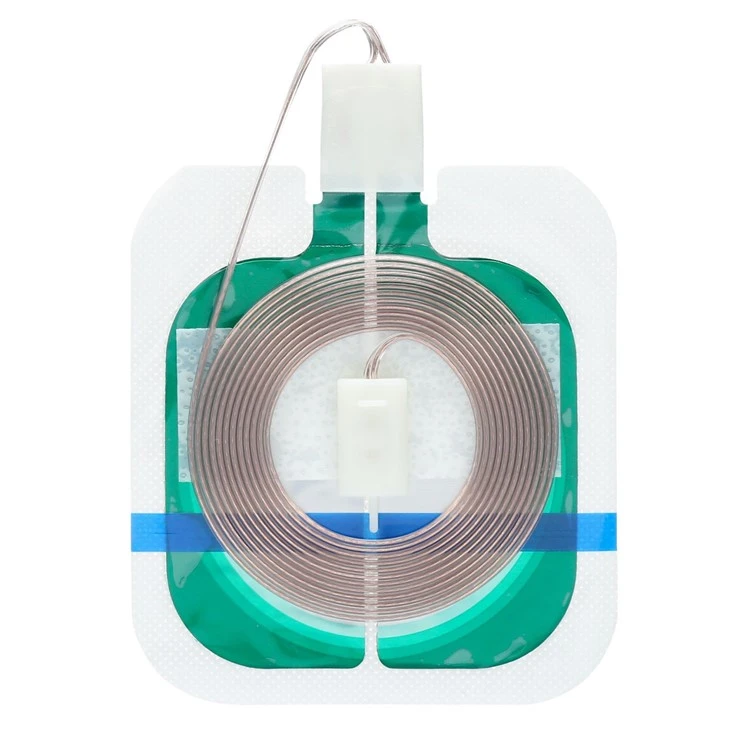

The TOP-RANK Patient Return Electrodes are manufactured with our patented high-moisture conductive hydrogel, which provides the performance of a gel without the mess of a gel.
Specifications
|
Serial Number |
Model |
Size |
Single or Split |
Whether the cable is connected |
Applicable Group |
|
1 |
EP0 |
150mm×90mm |
Single |
NO |
Children |
|
2 |
EP02 |
150mm×90mm |
Split |
NO |
Children |
|
3 |
EP03 |
210mm×100mm |
Single |
NO |
Adult |
|
4 |
EP04 |
210mm×100mm |
Split |
NO |
Adult |
|
5 |
EI01 |
135mm×180mm |
Single |
NO |
Adult |
|
6 |
EI03 |
135mm×180mm |
Split |
NO |
Adult |
|
7 |
EC04 |
210mm×100mm |
Split |
YES |
Adult |
|
8 |
EI04 |
210mm×100mm |
Split |
YES |
Adult |
Product Detail
1.Water-based hydrogel
- Water-based hydrogel lowers skin resistance.
- Elongation fills patient skin irregularities and minimizes contact voids to improve the total electrical conduction area.
2.Electrode pad
- The foam backing of the pads is negative for cytotoxicity, skin sensitization, and acute cutaneous irritation, prioritizing patient safety.
- Surface area disperses current over large area, minimizing heat buildup.
3.ODM available
- Our wide variety of high-quality grounding pads can be customized in bulk to meet your needs such as 3M-Style Universal Electrosurgical Pads. Additionally, you can choose to have them produced in our factories in China or Vietnam to help reduce costs.
- Adult and infant (less than 30 lbs.) sizes available.
Qualification Certificate: FDA/CE
FAQ
1. What are patient return electrodes?
Electrosurgical Patient Return Electrode is a single use, non-sterile disposable electrode with and without a pre-attached cord. The use is to complete an electrical circuit during electrosurgery between the generator, the active electrode, and an patient. It is furnished with a cord.
2.What are the materials and specifications of the dispersive electrode?
The grounding pad is made from PET, foam, aluminum foil, release paper, PET protective film, and gel. The sizes are as shown in the table.
3.Can the electrocautery grounding pad be customized in size or shape?
Yes. You can customize the negative electrode plates in different sizes and special shapes.
4.How is safety ensured for the Disposable Neutral Electrodes?
Our negative electrode plates meet international and domestic safety standards and have passed CE and FDA certifications.
5.Why do you place the patient return electrode over a large muscle mass?
The return electrode pad placement is essential for an ESU to function properly. The return electrode pad must be placed on a large muscle mass typically the thigh, the calf muscle, or the upper arm to help enhance its low density current characteristics.
6.What are the safety precautions to be considered with the placement of the patient return electrode?
When using an electrosurgical unit (ESU), the patient return electrode (grounding pad) must be placed carefully to avoid burns or other complications. Key precautions include ensuring proper skin contact, selecting a suitable site, and avoiding certain areas.
